Introduction

1.1 Introduction

Alpha-I
is a valve sizing tool that performs sizing calculations for DeZURIK
control valves based on your process conditions. The calculated data will
provide the information required by the user in selecting a suitable
valve for the process conditions input. After the sizing calculations are completed, Alpha-I
is able to predict the system characteristic and calculate the valve’s
installed characteristic. The installed characteristic graph visually displays the
relationship between flow rate and percentage open of the valve
based on your process conditions.

The program was developed by DeZURIK
to provide accurate valve sizing data based on ISA/Industry formulas.

Alpha-I was designed with the user interface in mind.
Selection for fluids, units, pipe and valve data are window driven. Process
information for a maximum of four conditions can be entered on one screen. All
process conditions are calculated simultaneously. Warning messages are displayed
to indicate when a potentially undesirable situation occurs.

Features

1.2 Features

Standard Program Features:



System Requirements

1.3 System Requirements

Support
Operating Systems – Windows 7, Windows 10

Microsoft® .NET 3.5 Framework.

Screen Resolution – 1280 by 800 or higher.

Program Overview

1.0 Program Overview

1.1 Introduction
1.2 Features
1.3 System Requirements



Main Screen Overview

2.1 Main Screen Overview

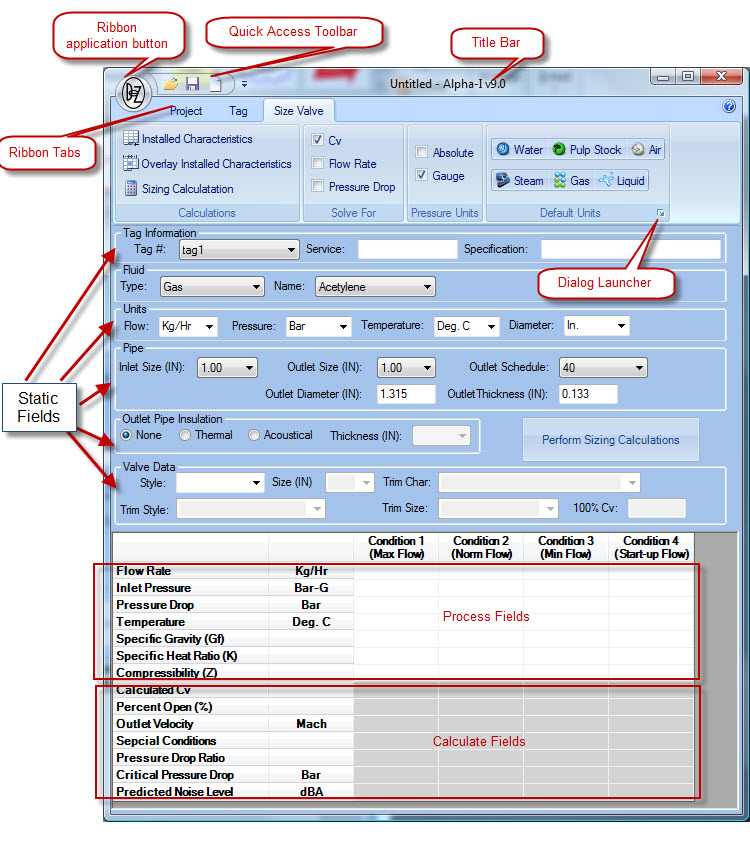

The main screen is divided into the following areas:

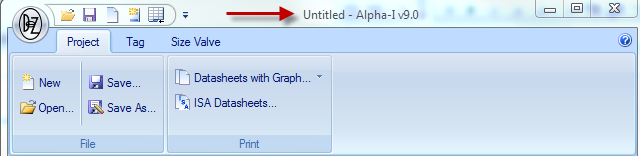

Title Bar – The blue bar across the top of the
program. The Title Bar displays the Program Icon, Project Name and Title,
minimize button (-), re-size button, and the close button (X).

Ribbon Application Button
– Contains the drop-down menus for Project, Tag and Print
operations.

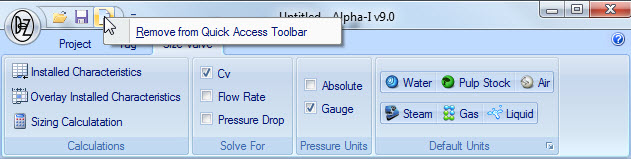

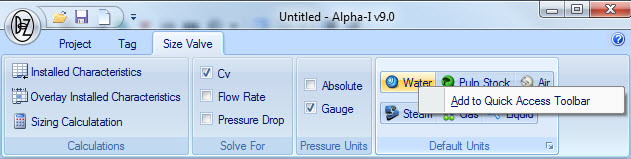

Quick Access Toolbar (QAT)
– Contains Icons for the
most commonly used commands.

Static Fields – Fields that are constant or do not
change for the different process conditions input. Static fields are divided
into the following groups, Tag Information, Fluid, Units, Pipe, Outlet Pipe
Insulation and Valve Data.

Process Fields – The first seven rows under each
process condition in the sizing grid are the process fields. Process fields for
Normal Flow are designated by a dotted line. Refer to section 2.5 for detailed
descriptions of the process fields.

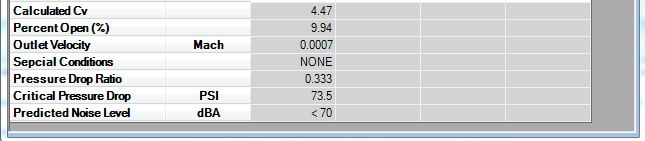

Calculate Fields – The last seven rows under each
process condition in the sizing grid are the calculate fields. All Calculated
fields are shaded. Refer to section 2.6 for detailed descriptions of the
calculated fields.

Using Alpha-I

2.0 Using Alpha-I

2.1 Main Screen Overview
2.2 Ribbon Tabs
2.3 Quick Access Toolbar Options

2.4 Static Fields
2.5 Process Fields
2.6 Calculated Fields

2.7 Filters and Multiple Valve Sizing
2.8 Print Preview

Process Fields

2.5 Process Fields

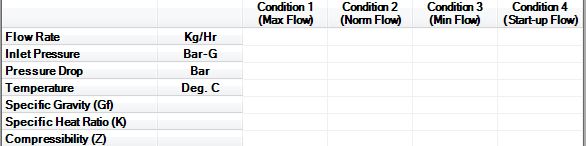

Figure 1 below illustrates the process fields.


Figure 1.

Flow Rate
 Required field when
solving for Cv or Pressure Drop and must be a positive number.



Throttling Cv
 Required field when solving for Flow Rate or
Pressure Drop. Must be a positive number and less than or equal to the
100% Cv value.





Inlet Pressure
Can be entered in absolute or gauge values for
all units. The selection of absolute or gauge units is made on the Size Valve
tab.



Pressure Drop
Required when
solving for Cv or Flow. Must be a positive number. When sizing with vacuum
conditions, the Inlet Pressure is usually equal to atmospheric pressure
and the Pressure Drop is equal to the amount of vacuum you are trying to
achieve. Pressure Drop is not a gauge or absolute value. It is the
difference between two gauge or two absolute values.
Temperature
The absolute value of Temperature
entered must be a positive number. If the Temperature values entered are °F or
°C, the value entered may be a negative number. For Gases and Liquids, the
program uses Temperature to calculate the fluid’s physical constants required
for sizing. The equations used have a temperature range for which the
calculations are deemed accurate. If the temperature input is out of this range,
the program will notify you and provide the calculated values. To insure
accurate sizing, you should check the fluid physical constants
calculated.
Fluid Constants
The three fields immediately following
Temperature are physical constants of the selected fluid which are
required for sizing the valve. Based on the type of fluid selected, the
fluid constants are: Specific Gravity, Vapor Pressure, Critical Pressure,
Compressibility, Specific Heat Ratio, Specific Volume or Specific Weight.
For known fluids, these values are normally calculated. If for some reason
they cannot be calculated, the program will leave the field blank and the
user must enter the value to continue sizing the valve. In all cases,
fluid constants must be positive numbers. Other checks are made on the
values to determine if they are valid for sizing.



Cutting, Copying and Pasting Process Data
Process data can be copied and pasted into another
column. To copy data, position the mouse cursor and click the left mouse
button over the field that is to be copied. If more fields are desired
continue holding the left mouse button and drag the selection over the
fields that are to be marked for copying. Once the fields are marked right
click in the marked area and select copy. To paste the fields, left click
in the column that is to be the target of the past. Right click and select
paste. The values will be placed in the appropriate cells. The standard Ctrl-X (cut),
Ctrl-C (copy) and Ctrl-V (paste) shortcut keys also work within the process
fields.



Static Fields

2.4 Static Fields

Figure 1 below illustrates the static fields.

Note: In the instructions, “click” denotes
positioning the mouse pointer over the described location and pressing the left
mouse button once.

“Highlight” denotes moving the mouse pointer over the
desired selection, in most cases doing this will cause the desired selection to
display with white text on a blue background.

“Active” means a field or cell is ready to have data
entered into it.


Figure 1.



Tag Information
Valve Tag #:

The Valve Tag Number Field is used to identify the
valve for saving and recalling sizing information. It is recommended you define
the Valve Tag Number when you first start the sizing process. The Valve Tag
Number can be defined by selecting New Tag from the File Menu on the Menu Bar or
by selecting the New Tag Icon (written page) which is the second Icon from the
left on the Tool Bar. Using either of these selections will cause the New Tag
dialogue box to appear. The user may type the Valve Tag Number into the field in
the dialogue box. To select a previously saved Valve Tag #, click anywhere in
the Valve Tag # Box. A list of saved Valve Tag Numbers will drop down. Select
the desired Valve Tag Number and all sizing data previously saved under that
Valve Tag Number will appear.

Service:

Service is a user defined field. The contents of the
field have no bearing on the operation of the program. It is provided to aid the
user in describing the purpose of the valve and is printed on both data sheet
printouts.

Specification:

Specification a user defined field. The contents of
the field have no bearing on the operation of the program. It is provided to aid
the user in describing the purpose of the valve and is printed on both data
sheet printouts.





 Fluid Data
Type:Fluid Type allows the user to select
the type of fluid for which the valve will be sized. Alpha-I has equations
to size for four types of fluids: Liquid, Gas, Steam and Pulp Stock. To
select a Fluid Type, click anywhere in the Fluid Type Box. A list of the
Fluid Types will drop down. Highlight the Fluid Type you desire and click
on it.

Name:

For each Fluid Type, Alpha-I knows the
fluid data required for a number of fluids. To select one of the known
fluids, click anywhere in the Fluid Name Box. A list of known fluids will
appear. Highlight the desired fluid and click on it. If you have selected Gas or Liquid
as the Fluid Type and the fluid you need is not in the Fluid Name list you
can either select the closest fluid from a physical property standpoint or you
can select “Other Liquid” or “Other Gas”. If “Other Liquid” or “Other Gas” is
selected, you will be required to input all the physical fluid constants required
for sizing. In many cases if you have a liquid slurry, you can select the fluid
that is transporting the slurry and adjust the Specific Weight or Specific
Gravity in the Process Conditions to account for the affects of the slurry. Fluid
Name is not active until the Fluid Type is selected. If you have suggestions
for fluids that would be valuable additions, contact DeZURIK with the
appropriate fluid physical properties so they can be added to future
versions.

Stock Consistency:

If the Fluid Type Selected is Pulp Stock, this box
will become active. Type the percent consistency of the pulp stock into this
field. If you have 3% consistency, enter “3” not “0.03” into this field. Alpha-I
has correction factors for consistency values <= 12%. The Stock Consistency
Factor will be applied to all conditions.

Other Fluid:

If “Other Gas” or “Other Liquid” is selected, this
field will become active. Enter the name of the fluid being sized into this
field.





 Units
Flow:To minimize conversions, Alpha-I provides options for
multiple Flow Units for each Fluid Type. To select a Flow Unit, click anywhere
in the Flow Unit Box. A list of Flow Units will drop down. Highlight the Flow
Unit you desire and click on it. The Flow Unit Box is not active until the Fluid
Type has been selected.

Pressure:

To minimize conversions, Alpha-I provides options for
multiple Pressure Units. To select a Pressure Unit, click anywhere in the
Pressure Unit Box. A list of Pressure Units will drop down. Highlight the
Pressure Unit you desire and click on it.

Temperature:

To minimize conversions, Alpha-I provides options for
multiple Temperature Units. To select a Temperature Unit, click anywhere in the
Temperature Unit Box. A list of Temperature Units will drop down. Highlight the
Temperature Unit you desire and click on it.

Diameter:

To minimize conversions, Alpha-I provides options for
multiple Diameter Units. To select a Diameter Unit, click anywhere in the
Diameter Unit Box. A list of Diameter Units will drop down. Highlight the
Diameter Unit you desire and click on it.





 Pipe Data
Inlet Size:Alpha-I can size valves that range in size from ¼ –
72″ (15 – 1800 mm). Calculations take into account when the pipe size and valve
body size are not the same. To select an Inlet Pipe Size, click anywhere in the
Inlet Size Box. A list of Inlet Pipe Sizes will drop down. Highlight the Inlet
Pipe Size you desire and click on it. Inlet Size field is not active until the
Diameter Units have been selected.

Outlet Size:

Alpha-I can size valves that range in size from ¼ –
72″ (15 – 1800 mm). Calculations take into account when the pipe size and valve
body size are not the same. To select an Outlet Pipe Size, click anywhere in the
Outlet Size Box. A list of Outlet Pipe Sizes will drop down. Highlight the
Outlet Pipe Size you desire and click on it. Outlet Size field is not active
until the Diameter Units have been selected.

Outlet Schedule:

Alpha-I has data stored for many Schedules of Outlet
Pipe Sizes. To select an Outlet Pipe Schedule, click anywhere in the Outlet
Schedule Box. A list of Outlet Pipe Schedules will drop down. Highlight the
Outlet Pipe Schedule you desire and click on it. Outlet Schedule field is not
active until the Diameter Units have been selected. The Outlet Pipe Schedule is
used exclusively in calculations for Predicted Noise Level.

Outlet Diameter:

Based on the Outlet Pipe Size and Schedule selected,
Alpha-I will display the Outlet Pipe Diameter if known. If it is not known, the
field will display a 0 value and the user will need to enter a valid diameter
before sizing calculations can be performed.

Outlet Thickness:

Based on the Outlet Pipe Size and Schedule selected,
Alpha-I will display the Outlet Pipe Thickness if known. If it is not known, the
field will display a 0 value and the user will need to enter a valid thickness
before sizing calculations can be performed.

Outlet Pipe Insulation:

Insulation is a path treatment for noise. It does not
prevent the creation of noise, it prevents the noise from reaching an undesired
location. Path treatment should be used with caution as excessive noise can be
detrimental to the valve and piping system. Path treatments are only effective
as long as the treatment exists. When using insulation as a path treatment, the
reduction in noise is only effective for the length of pipe that is insulated.
If the pipe insulation stops, the noise reduction also will stop. Noise will
propagate down the pipeline for many pipe diameters. Alpha-I allows you to
select two types of insulation, thermal and acoustical of varying thicknesses.
The reductions in noise are average values and will be affected by the frequency
of the noise.





 Valve Data
Style:Alpha-I can size for many styles of
DeZURIK Control Valves. Before any calculations can be performed, the Style of
valve desired must be selected. To select a Valve Style, click anywhere in the
Valve Style Box. A list of Valve Styles will drop down. Highlight the Valve
Style you desire and click on it. Selecting “Apply Filters” as the Valve Style
will direct Alpha-I to size for all valves meeting the criteria selected in the

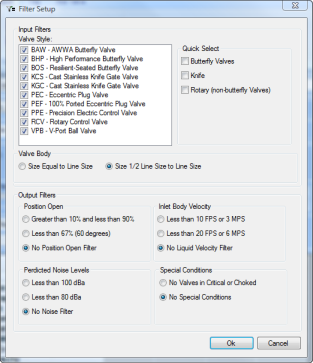

Filter Setup dialogue box. Refer to section 2.9 for additional information on
filters and multiple valve sizing.

Size:

Alpha-I can solve for three variables: Cv, Flow and
Pressure Drop. What to solve for is selected from the Menu Bar; Solve for Cv is
the default selection and will be selected every time the program is started.
When solving for Flow or Pressure Drop, the Valve Size field is required. When
solving for Cv, the Valve Size field is optional. A powerful feature of Alpha-I
is its ability to size for the smallest body size for the selected Valve Style
based on the process conditions input. To let Alpha-I automatically size for the
smallest valve body size, select the Valve Style and leave the body size field
and all other fields in the Valve Data Group blank when you perform the
calculations. Alpha-I’s autosize feature will never select a body size less than
¼ of the Inlet Pipe Size. You can manually select body sizes less than ¼ of the
inlet pipe size and Alpha-I will perform the sizing calculations. To select a
Valve Size, click anywhere in the Valve Size Box. A list of Valve Sizes based on
the Valve Style selected will drop down. Highlight the Valve Size you desire and
click on it. To clear the Valve Size Field, go back to the Valve Style Field and
re-select a Valve Style. Valve Size will not be active until Valve Style has
been selected.

Trim Characteristic:

The “Trim Char” Field contains the Trim
Characteristics available based on the Valve Size selected. The “Trim Char”
field is not active until Valve Style & Size have been selected. To select a
Trim Characteristic, click anywhere in the “Trim Char” Box. A list of Trim
Characteristics available, based on other Valve Data selected, will drop down.
Highlight the Characteristic you desire and click on it. If only one Trim
Characteristic is available for the Valve Data previously selected, it will be
automatically displayed. To clear the Trim Char Field, go back to the Valve Size
Field and re-select a Valve Size.

Trim Style:

The Trim Style Field contains the Trim Styles
available based on the Valve Data previously selected. The Trim Style field is
not active until all Valve Data fields preceding it have been selected. To
select a Trim Style, click anywhere in the Trim Style Box. A list of Trim Styles
available, based on other Valve Data selected, will drop down. Highlight the
Style you desire and click on it. If only one Trim Style is available for the
Valve Data previously selected, it will be automatically displayed. To clear the
Trim Style Field, go back to the Trim Char Field and re-select a Trim
Characteristic.

Trim Size:

The Trim Size Field contains the Trim Sizes available
based on the Valve Data previously selected. The Trim Size field is not active
until all Valve Data fields preceding it have been selected. To select a Trim
Size, click on the arrow in the Trim Size Box. A list of Trim Sizes available
based on the Valve Style & Size selected will drop down. Highlight the Size
you desire and click on it. If only one Trim Size is available for the Valve
Style and Size selected, it will be automatically displayed. To clear the Trim
Size Field, go back to the Trim Style Field and re-select a Trim Style
Size.

100% Cv

The 100% Cv field will display the Cv value with the
valve 100% open. It is displayed when all the fields in the Valve Data group are
filled in.



Calculated Fields

2.6 Calculated Fields

Calculated fields
display the values that are calculated base on the static and process field
values entered. The fields are read-only. Figure 1 below illustrates the calculated fields.


Figure 1.



Flow Rate
Calculated based on
equations provided in ISA-S75.01-1985 (R1995) standard.  Factors for Pipe Reducers
(Fp) are included. When the Fluid Type is Pulp Stock, consistency
correction factors developed by DeZURIK are applied.





Pressure Drop
Calculated based equations provided in
ISA-S75.01-1985 (R1995) standard.  Factors for Pipe Reducers (Fp) are
included. When the Fluid Type is Pulp Stock, consistency correction
factors developed by DeZURIK are applied.





Cv
Calculated based equations provided
in ISA-S75.01-1985 (R1995) standard.  Factors for Pipe Reducers (Fp)
are included. When the Fluid Type is Pulp Stock, consistency correction
factors developed by DeZURIK are applied.





Position Open
Determined by
comparing the Cv calculated (or input when sizing for Flow or Pressure
Drop) versus the actual Inherent Cv curve of the specific valve selected.





 Inlet Velocity
Calculated for
Liquids, including Pulp Stock, and is based on the nominal inlet size of
the valve selected.





Outlet Velocity
Calculated for Gas and Steam.
The calculation is based on the nominal diameter of the Outlet Pipe Size. The
calculation is displayed as a Mach velocity which is the ratio of the fluid
velocity to the sonic velocity of the fluid.





Special Conditions
Identified in
the program are Critical Cavitation and Flashing for Liquid and Choked
Flow for Gas and Steam. If any of these conditions are present, the
program will display them in bold red letters. When critical flow occurs
in liquids, part of the liquid is actually changing state from a liquid to
a vapor and then back to a liquid again. This is known as cavitation. The
change in state from the vapor back to the liquid can be very damaging to
the valve or downstream piping and should be avoided if  possible.
When critical cavitation occurs in liquid flow, the formation of the vapor
takes up a substantial volume in the valve body / trim. This additional
volume “chokes” the valve, limiting the flow. Once this point is reached,
an increase in flow cannot be achieved by increasing the pressure drop.
When choked flow occurs in gas or steam, the gas or steam does not change
state. Choked flow in gas or steam indicates that the pressure in the
vena-contracta (typically the location in the valve body / trim right
after the valve orifice) has dropped low enough that the expansion in the
gas or steam at this low pressure has taken up so much additional volume
that is has “choked” the valve, limiting the flow. Like liquids, once this
point is reached, an increase in flow cannot be achieved by increasing the
pressure drop. Unlike liquids, choked flow in gas or steam is not a good
damage indicator. In many cases damage will not occur when gas or steam
achieves choked flow. A much better indicator for damage in gas or steam
is the predicted noise level or outlet velocity.





Pressure Drop Ratio
Calculated for
Gas and Steam. This is the ratio of the Pressure Drop to the absolute
Inlet Pressure.





Incipient Pressure Drop
Calculated for
Liquids, including Pulp Stock. This defines the measurable onset of
cavitation as it begins to affect the capacity of the valve. Incipient
Pressure Drop is not included in the ISA S75.01 standard, but is
recognized in the valve industry.





Critical Pressure Drop
Calculated for all fluid types based
on ISA S75.0-1985 (R1995) equations. It defines the pressure drop at which
flow will or has become limited across the control valve for the given
process conditions.





Predicted Noise
Calculated based
on industry equations. The calculated noise is at a distance three feet
downstream of the control valve and three feet from the outside pipe wall.
It does not take into account any factors due to insulation, reflective
surfaces, or non-standard piping. It does take into account the Outlet
Pipe Diameter and Wall Thickness.

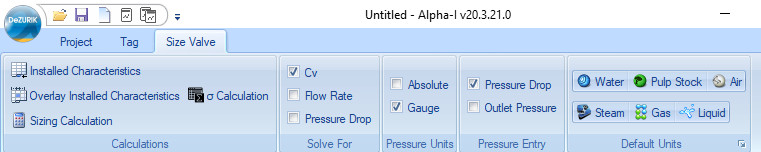

Size Valve Tab

Size Valve Tab

The size
valve tab is used to control those items that have to do with sizing a
valve.

 Calculations Group
 Installed Characteristics – displays
the installed characteristics graph.

Overlay
Installed Characteristics – displays the overlay installed characteristics
graph.

Sizing
Calculation – performs the sizing calculation.

Sigma Calculation – performs the sigma
calculation and displays a cavitation report.



Solve For Group
Cv
– instructs the program to use the solve for Cv equations. This is the
default value. The headings for the rows in the process / calculate grid are
changed to indicate what information must be input.Flow
– instructs the program to use the solve for Flow equations. The headings
for the rows in the process / calculate grid are changed to indicate what
information must be input.

Pressure Drop
– instructs the program to use the solve for Pressure Drop
equations. The headings for the rows in the process / calculate grid are changed
to indicate what information must be input.



Pressure Units Group
Pressure Units –
displays absolute and gauge. The selected choice is indicated by a check
mark. Whichever choice is selected will dictate the value that needs to be
entered for input pressure units.
Default Units
Water –
automatically fills in the Fluid Type field with Liquid, the Fluid Name
field with Water and all the fields in the Units group and the Pipe
Schedule field with the user defined values.Pulp Stock
– automatically fills in the Fluid Type field with Pulp Stock. The
Fluid Name field, all the fields in the Units group and the Pipe Schedule field
are filled in with user defined values.

Air
– automatically fills in the Fluid Type field with Gas, the Fluid Name
field with Air and all the fields in the Units group and the Pipe Schedule field
with the user defined values.

Steam
– automatically fills in the Fluid Type field with Steam, the Fluid Name
field with Saturated and all the fields in the Units group and the Pipe Schedule
field with the user defined values.

Gas
– automatically fills in the Fluid Type field with Gas. The Fluid Name
field, all the fields in the Units group and the Pipe Schedule field are filled
in with user defined values.

Liquid
– automatically fills in the Fluid Type field with Liquid. The Fluid
Name field, all the fields in the Units group and the Pipe Schedule field are
filled in with user defined values.

Setup – displays the Default Units Setup
window. For each of the Default Units, the user can define
which values should automatically fill in. To display the Default Unit Setup
dialog click on the dialog launcher button at the bottom right.





Tag Tab

Tag Tab

The tag tab is used to control
those items that have tag scope.

 Edit Group
New – will prompt the New Tag Number
dialog box to appear. The Tag Number for the valve being sized needs to be typed
into this field. If any data for the existing Tag Number has changed since it
was last saved, you will prompted to save the data before switching to the new
tag.

Rename – will
rename the current tag.

Copy
– allows the user to copy the existing tag information under
a new Tag Number. This feature is useful when the valve you are about to size
has similar process data or ISA Data to a previously sized valve.

Delete
– allows the user to remove the current tag from the existing
project.





 Prompts Group
Comments
– displays the Data
Sheet Comments dialogue box. Text entered into these four fields will appear on the
bottom of the DeZURIK Data Sheet printout.ISA Datasheet
– displays the ISA Print Specifications dialog box. The
ISA Data Sheet S20.50 includes much more information than what is generated by
the sizing program. Eight screens are provided to input all the information to
specify the valve which was sized. Many fields have drop down boxes with common
data for the specific field. To select information from the drop down, click on
the field and then click on the desired choice. This information is saved with
the other sizing information for the tag number.





 Print Group

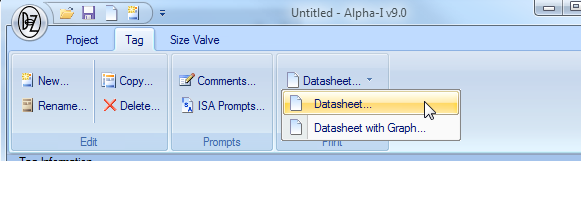

Datasheet – prints the current Tag Number in
the DeZURIK Datasheet format. This menu item is a combo box and it has two
options; Datasheet… and Datasheet with Graph…
The Datasheet with Graph… option will
calculate and print
the installed characteristics graph for the tag given
that there is enough data to do so.

ISA Datasheet
– prints the current Tag Number in the ISA S20.50 Data
Sheet format.





Project Tab

Project Tab

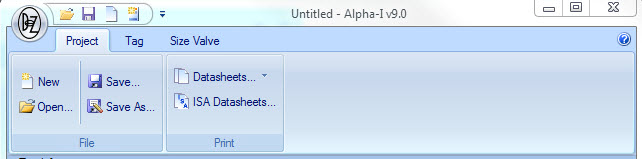

The project tab is used to
control those items that have project scope.



 File Group
New
– will
clear the existing Project Name and all Valve Tag Information inside that Project from
memory. If any information exists that has not been saved, you will be prompted
to save the existing data before it is cleared. The Project Name will be
displayed as Untitled until the Project is saved.Open – displays the Open Project dialogue
box. A list of previously saved projects in the default directory will be
displayed. Highlight the Project desired and click on the Open button.

Save – saves the current Tag Number in
memory to the hard drive (or other specified location) under the current Project
Name. If the Project Name is Untitled, you will be prompted to supply a Project
Name.

Save As – saves all the Tag Numbers under
the current Project Name to a new Project Name or to a different location. This
command allows you to rename the Project or to save an existing Project, under a
new name or the same name, to another location.





 Print Group

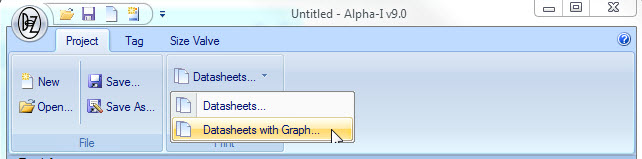

Datasheet – prints all Tag Numbers
in the current Project at one time in the DeZURIK Data Sheet
format. The menu item is a combo box and it has two options; Datasheets…
and Datasheets with Graph… The
Datasheets with Graph… option will
calculate and print the
installed characteristics graph for each tag given that there is enough data to do
so.

ISA Data Sheet – prints all Tag Numbers in the current Project at one time
in the ISA S20.50 Data Sheet format.



Print Preview

2.8 Print Preview

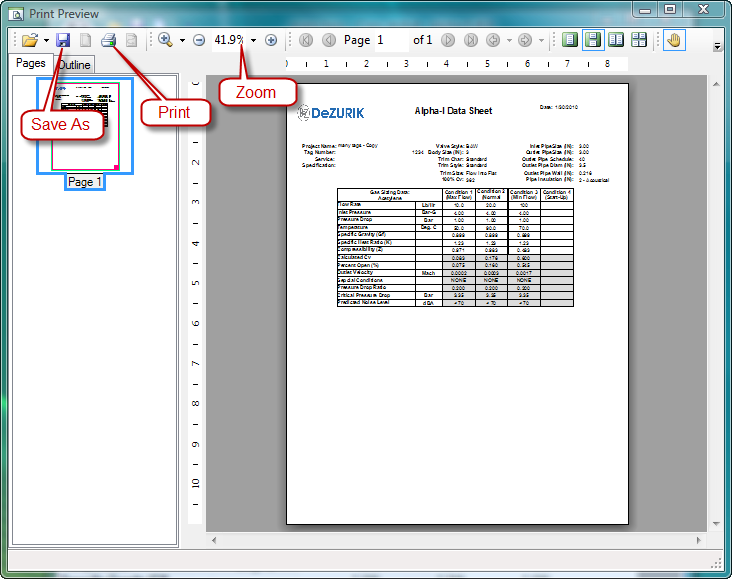

Displays a dialog box that shows the preview of
the document to be printed. The Print Preview dialog not only allows for previewing a
document but also
allow full text search and the ability to save the print job as a PDF file. Figure 1 shows the tool bar
locations for Save as PDF, Print and Zoom.


Figure 1.

Save Printout as PDF

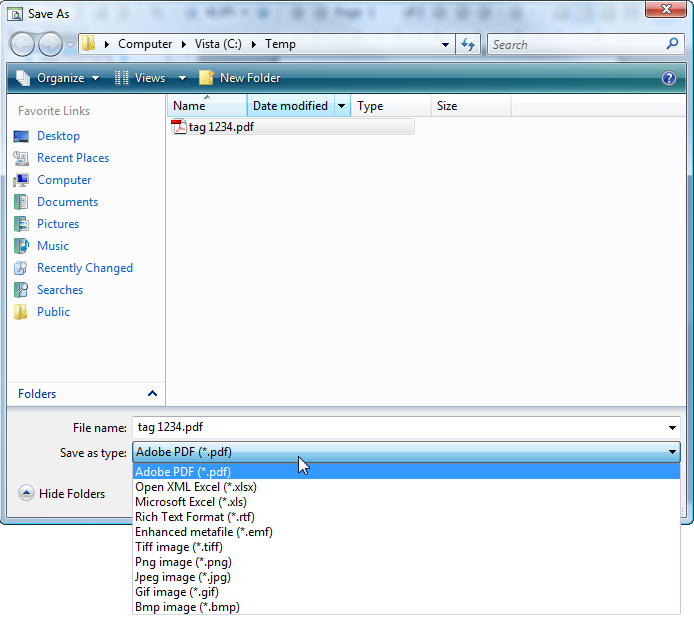

1) Left click on the [Save As]  icon on the toolbar and the Save As dialog will
be displayed.

2) Change the Save as type to Adobe PDF as shown in Figure 2.


Figure 2.

3) Name the PDF file using the File name text box.



Filters and Multiple Valve Sizing

2.7 Filters and Multiple Valve Sizing

A powerful
feature of Alpha-I is the ability to size for multiple valves and filter the
criteria used for selecting which valves are selected for sizing. There are two
types of filters. Input filters limit which valves Alpha-I selects from the data
base to try to size for the process conditions entered. Output
filters are used to limit which valves are displayed based on calculated results
other than Cv.

Input filters include valve style and valve body
size. Valve styles can be selected individually from the scrolling list or in
groups. If a valve style or group is selected (a check mark is present) Alpha-I
will size for that style or group of valves when Apply Filters is selected from
the Valve Style input field. If the style or group is not selected, Alpha-I will
not size for that valve or valve group. Valve body size can be limited to the
same size as the inlet line size or for all body sizes from 1/2 of the inlet
line size to the inlet line size.

Output filters include position open, predicted noise
level, inlet body velocity and special conditions. If an output filter is set
and a valve meets the capacity requirements of the process conditions but does
not meet the conditions of the output filter for at least one process condition,
that valve will not be displayed in the Filtered Valve List.

Multiple Valve Sizing

To size for multiple
valves, enter all static and process data as you normally would. In the
Valve Data Group, select Apply Filters as the Valve Style as shown in Figure 1.


Figure 1.

When Perform
Sizing Calculations is clicked, Alpha-I will display the Filter Setup dialog shown in Figure 2.


Figure 2.

Select the desired filter values and click
Ok. The Filter Setup dialog is displayed each time the Valve Data Style is set
to “Apply Filters”. The previously selected values are used the next time the
Filter Setup dialog is displayed.

Filtered
Valves dialog box is then displayed. In this box, all valves that meet
the process conditions input based on flow
capacity are displayed. The results for each process condition entered can be viewed by
selecting the appropriate condition from the tab at the top of the dialog
box. Click on the desired valve to highlight it and click ok select the
valve.


Figure 3.

Alpha-I filters valve styles based on flow capacity
only. It does not take such items as temperature or pressure class of valve into
consideration.

For most sizing problems, the list of valves
displayed in the Filtered Valve List dialog box will be excessive. To narrow the
list of valves, Alpha-I allows you to filter the results based on the type of
valve, line size preference and specific output calculations.

Menu Bar Commands

2.2 Ribbon Button Options

This section
describes the ribbon tab interface.

Tool Bar Commands

2.3 Quick Access Toolbar Options

Quick Access Toolbar (QAT)

The
Quick Access Toolbar (QAT) provides quick access for commonly used commands
to increase productivity. The QAT is located in the upper-left corner next to the
main application button. You can add or remove items to
the QAT to customize it to fit your needs. By placing the most commonly used
items in the QAT, you eliminate the need to hunt through tabs and groups since
your items are now in the forefront. For steps showing how to customize the QAT
at design time, see below.

Add Item to QAT

Any ribbon tab item can be
placed into the QAT by right clicking on it and selecting [Add to Quick Access
Toolbar].

Remove Item from QAT

To remove a
QAT item right click on it and select [Remove from Quick Access Toolbar].

Shortcut Keys


2.1.1 Shortcut Keys



Project Tab Shortcut KeysCtrl+NNew project.Ctrl+OOpen project.Ctrl+SSave project.





Tag Tab Shortcut KeysCtrl+Shift+NNew tag.Ctrl+Shift+RRename tag.Ctrl+Shift+CCopy tag.Ctrl+Shift+DDelete tag.



Managing Data

3.0 Managing Data

3.3 How Sizing Data is Saved
3.4 How to Transport Sizing Data
3.5 Backing Up Sizing Data
3.6 Deleting Projects

ManagingDataTags

3. Tags

The section describes how to create, delete, copy and rename tags in a project.

When Alpha-I initially starts it has an untitled project
with one tag called tag1 already created for your use.

Create New Tag
To create a new tag click on the [New]
button and the New Tag dialog is presented.

 Enter a unique tag name and click [Ok]. The new tag that is created becomes the active tag.

Delete Tag
To remove a tag from the project click on the [Delete] button. A
dialog will be displayed confirming the deletion.

Rename Tag
To rename an existing tag
click on the [Rename] button and the Rename Tag dialog is
presented.
Enter a unique tag name and click
[Ok]. The newly renamed tag remains the active tag.

Copy Tag
To copy an existing tag
click on the [Copy] button and the Copy Tag dialog is
presented.
Enter a unique tag name and click [Ok]. The newly
copied tag becomes the active tag.



Managing Data Projects

3.1 Projects

The section
describes how to create new projects, save projects and open existing
projects.

Create New Projects
When Alpha-I is started it initially creates an
empty and unsaved project. The project is untitled and is the starting point for any new
project. Figure 1 shows the title bar of a new project.


Figure 1.

 New tags can be created and valves can be sized using
the untitled project. To have the ability to recall a project it must be saved. This is accomplished by clicking on the [Save…]
button in the Project tab. If this is the first time the project has been saved a Save
As dialog will prompt for a project name and location.

A new
project can be create a by clicking on the [New] button in the
Project tag found in the File group.

Open Projects
Saved project can
be opened by selecting [Open] button in the Projects tab found in the File
group. This will bring up an open file dialog which can be used to browse to
project files.

How Sizing Data is Saved

3.3 How Sizing Data is Saved

Alpha-I saves sizing data in a file with the
extension .alphaI. One project can hold practically unlimited Tag Numbers. The
Tag Number must be unique as it is used to differentiate between tags.

Backing Up Sizing Data

3.5 Backing Up Sizing Data

Backing Up sizing information only requires backing
up the project file with the “.alphaI” extension. You should not need to back up
the Alpha-I program software as this can be reloaded if necessary.

How to Transport Sizing Data

3.4 How to Transport Sizing Data

To transport information from one machine to another,
all that is required is to move the appropriate project file with the “.alphaI”
extension. Both machines must have a copy of the Alpha-I software loaded.

Deleting Projects

3.6 Deleting Projects

Valve Tag Numbers can be deleted from within the
Alpha-I program. Project files cannot be deleted from within the Alpha-I
program. To delete an Alpha-I project, delete the Project file with the “.alphaI”
extension outside of the program.
