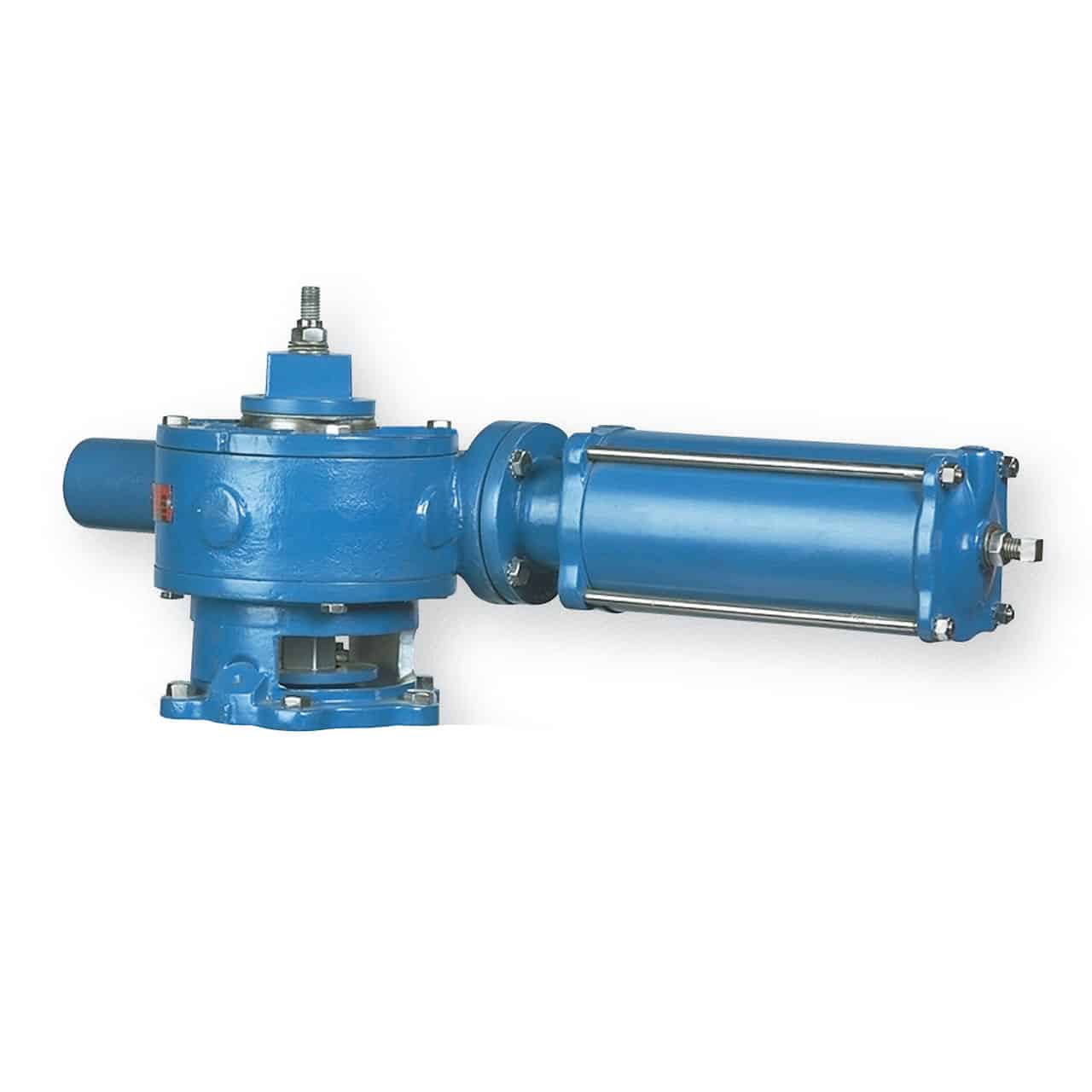

G-Series Cylinder Actuators

DeZURIK G-Series cylinder actuators feature a rack-and-gear design for larger size rotary valves, where constant high torque capability throughout the stroke is required. They feature a rugged, heavy cast gear sector and are engineered for long service life in high-flow, high-cycle applications. Cylinder construction includes a cast piston with combination seal and guide ring of PTFE. They have multiple bronze and stainless steel bearings for corrosion resistance that also provide support and minimize friction to assure smooth operation and throttling action.

G-Series cylinder actuators are available on eccentric plug valves (PEC), full port eccentric plug valves (PEF), 3-Way & 4-Way plug valves (PTW/PFW), AWWA butterfly valves (BAW), and High Performance butterfly valves (BHP). They are available in double-acting or spring-return pneumatic supply or double acting hydraulic supply.

The cast iron actuator housing is sealed to prevent the entry of dirt, moisture and corrosive contaminants. They have adjustable position stops in both the open and closed positions. A variety of accessories including positioners, manual overrides and solenoid valves are available.

Dezurik G Series Cylinder Actuators
Bulletins
Open Close
DeZURIK G-Series Rotary Cylinder Actuator Sizing Sheets 73.00-2

DeZURIK G-Series Rotary Cylinder Actuator Sizing Sheets 73.00-2

Download Resource
DeZURIK G-Series Rotary Cylinder Actuators 73.00-1

DeZURIK G-Series Rotary Cylinder Actuators 73.00-1

Download Resource
Specification
Open Close

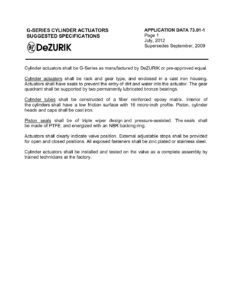

G-Series Cylinder Actuators Suggested Specifications 73.01-1

G-Series Cylinder Actuators Suggested Specifications 73.01-1

Download Resource
Manuals
Open Close
D10082 - DeZURIK CYLINDER OPERATED G-SERIES ACTUATOR FOR BUTTERFLY VALVES

D10082 – DeZURIK CYLINDER OPERATED G-SERIES ACTUATOR FOR BUTTERFLY VALVES

Download Instruction Manual

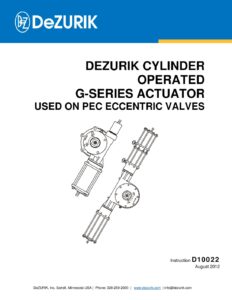

D10022 - DeZURIK CYLINDER OPERATED G-SERIES ACTUATOR FOR PEC ECCENTRIC VALVES

D10022 – DeZURIK CYLINDER OPERATED G-SERIES ACTUATOR FOR PEC ECCENTRIC VALVES

Download Instruction Manual

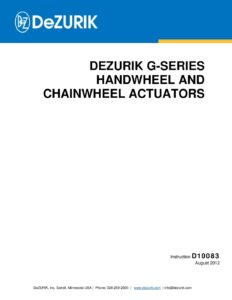

D10083 - DeZURIK G-SERIES HANDWHEEL AND CHAINWHEEL ACTUATORS

D10083 – DeZURIK G-SERIES HANDWHEEL AND CHAINWHEEL ACTUATORS

Download Instruction Manual
D10075 - DeZURIK ADJUSTABLE OPEN STOP (ST) FOR G-SERIES ACTUATORS

D10075 – DeZURIK ADJUSTABLE OPEN STOP (ST) FOR G-SERIES ACTUATORS

Download Instruction Manual

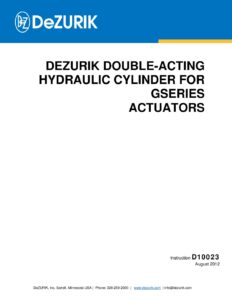

D10023 - DeZURIK DOUBLE-ACTING HYDRAULIC CYLINDER FOR G-SERIES ACTUATORS

D10023 – DeZURIK DOUBLE-ACTING HYDRAULIC CYLINDER FOR G-SERIES ACTUATORS

Download Instruction Manual

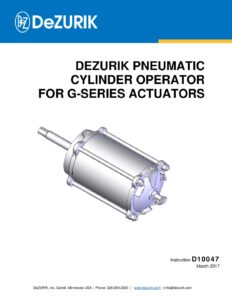

D10047 - DeZURIK PNEUMATIC CYLINDER OPERATOR FOR G-SERIES ACTUATORS

D10047 – DeZURIK PNEUMATIC CYLINDER OPERATOR FOR G-SERIES ACTUATORS

Download Instruction Manual
D10076 - DeZURIK ENK NECK EXTENSIONS FOR G-SERIES ACTUATORS ON PEC ECCENTRIC VALVES

D10076 – DeZURIK ENK NECK EXTENSIONS FOR G-SERIES ACTUATORS ON PEC ECCENTRIC VALVES

Download Instruction Manual
