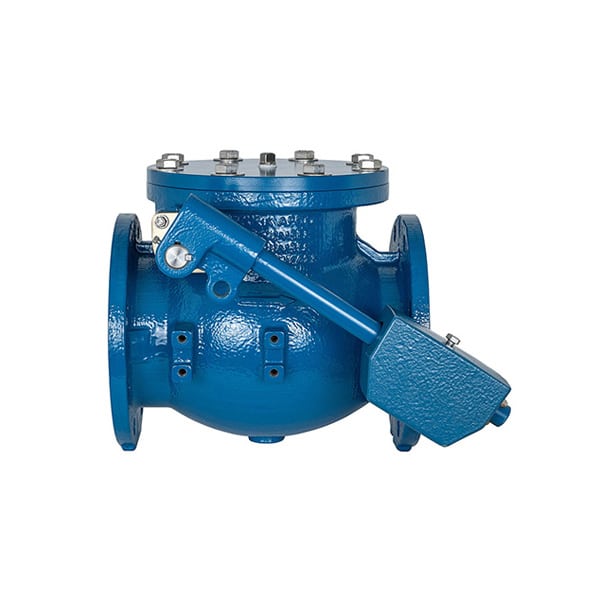

APCO Swing Check Valves (CVS-6000)

Name: APCO Swing Check Valves (CVS-6000)
Brand: DeZURIK

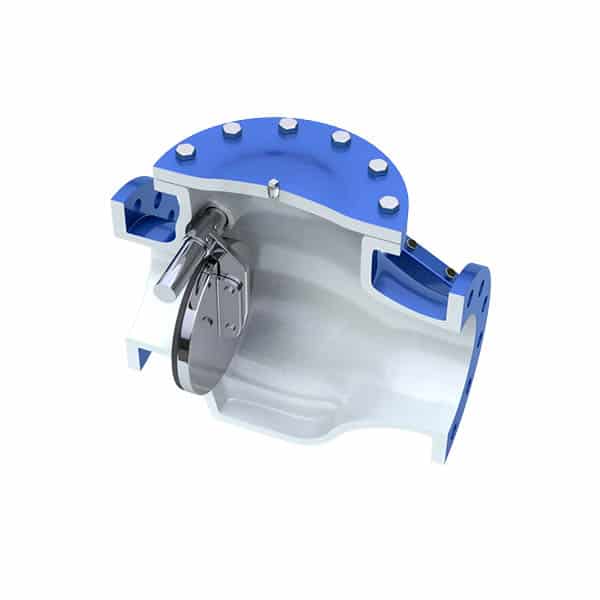

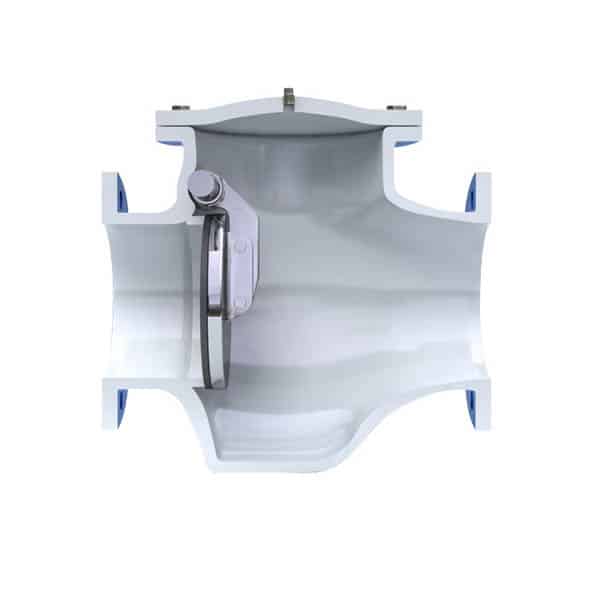

All APCO Swing Check Valves are used to prevent the back flow of fluid by closing before flow reversal, thereby preventing slam and water hammer. APCO Swing Check Valves have been successfully installed in clean and dirty applications including sewage treatment, water treatment, water distribution, industrial water and wastewater services. The industrial swing check valve design meets or exceeds the current revision of AWWA standard C508.

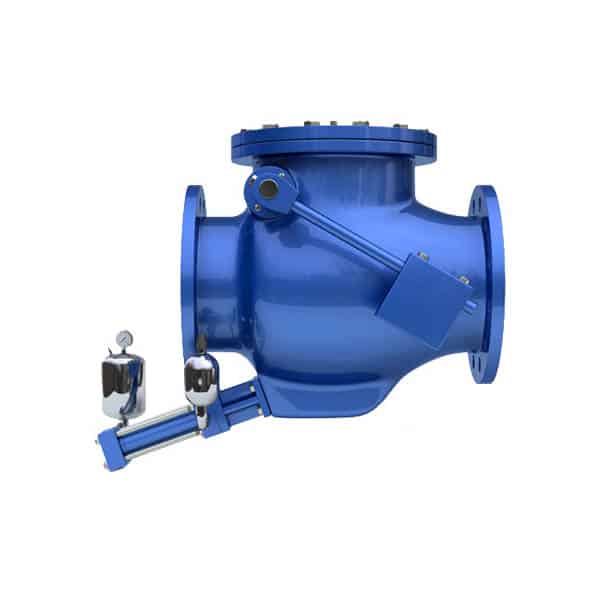

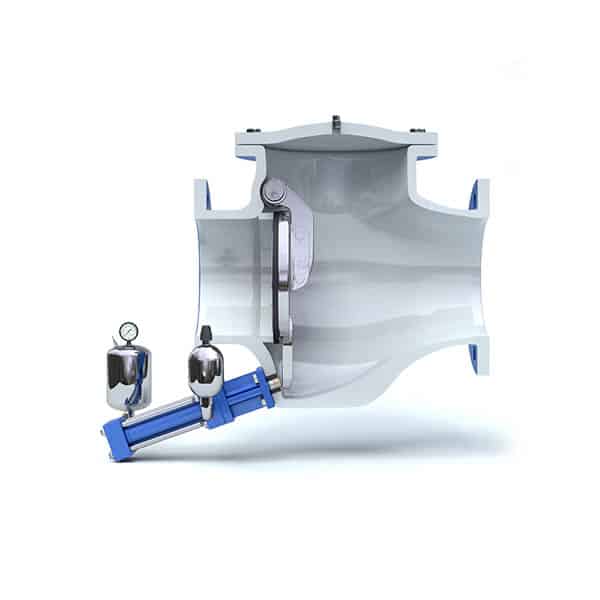

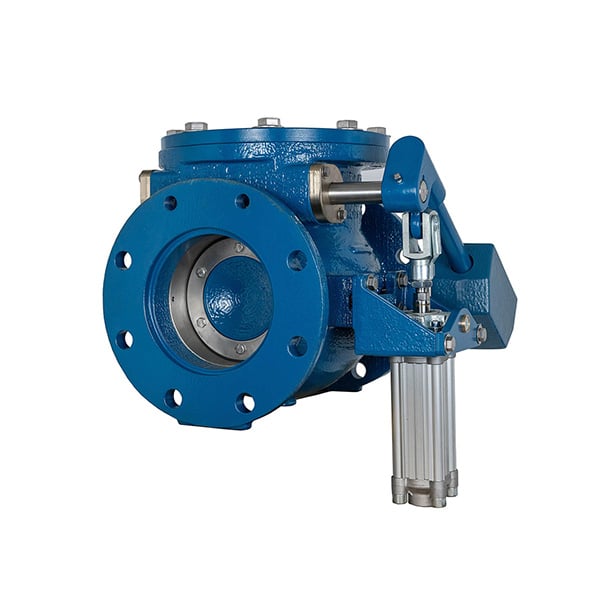

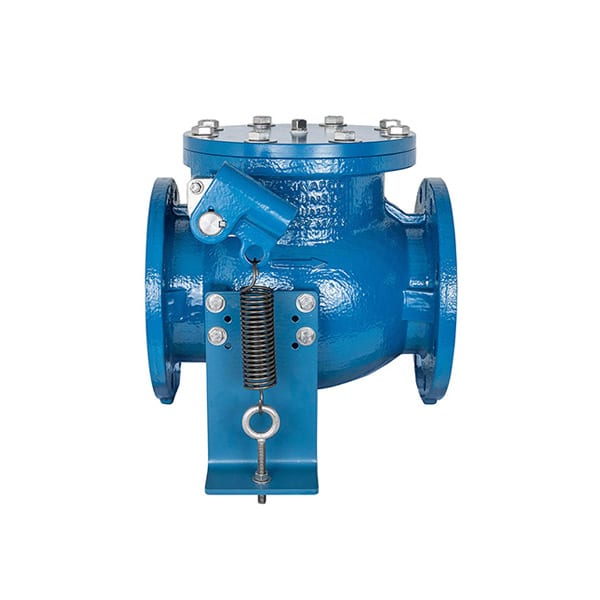

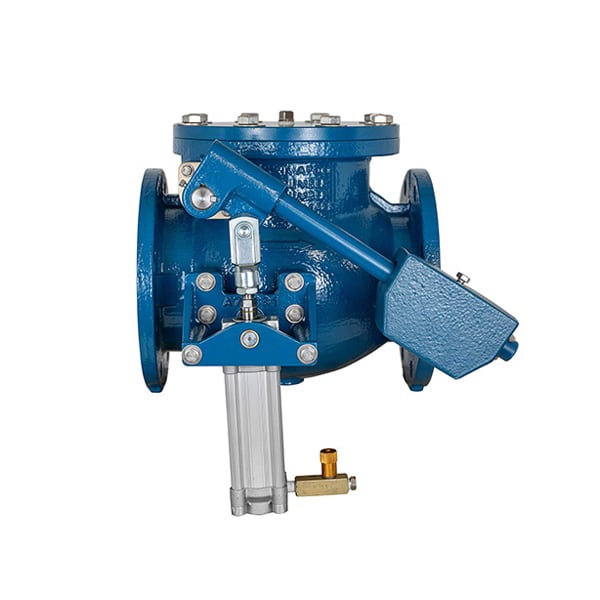

APCO CVS-6000/6000A Valves are available in sizes 2-66” (50-1700mm), can be rated up to 640 psi CWP (4410 kPa) and are available with ASME Class 125/150 or Class 250/300 flanges. Constructed with a heavy ductile iron body. Closure control devices include Air Cushioned Cylinder, Oil Controlled Cylinder, Bottom Mounted Buffer, Lever & Spring and Lever & Weight. In addition, the CVS-6000/6000A may be ordered as a convertible model that allows field conversion of the closure device.

APCO CVS-EDV and CVS-250 Swing Check Valves are also available. Contact your local DeZURIK representative for a recommendation on the right swing check valve for your application!

Snapshot

Open Close

SIZE RANGE:
2-66″ (50 – 1700mm)

BODY MATERIAL:
Ductile Iron

DISC SEAT MATERIALS:
Resilient or Metal

END CONNECTIONS:
ASME Class 125/150 or Class 250/300

CLOSURE DEVICES:
Air Cushioned Cylinder, Oil Controlled Cylinder, Bottom Mounted Buffer, Lever & Spring and Lever & Weight

Bulletins

Open Close

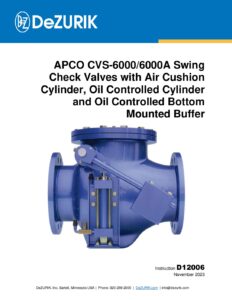

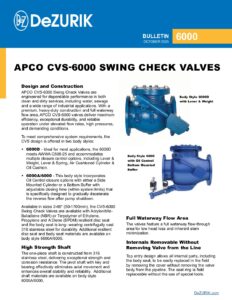

APCO CVS-6000/6000A Swing Check Valves 6000

Download Resource

Applications

Open Close

Valve Selection for the Safe Operation & Protection of the Pump Station

Download Resource

APCO CVS-6000 Swing Check Valves Protect Airport from Flooding 231

Download Solution

Defining Expectations During Valve Selection

Download Resource

Selection & Sizing

Open Close

Material Selection Guide

DeZURIK’s Material Selection Guide program makes it quick and easy to determine which metals or elastomers are suggested as suitable for application in a specific corrosive media. Click the icon above to learn more or use the program.

APCOST

APCOST allows you to compare flow characteristics and energy costs of an APCO check valve and an alternate valve in a pump discharge application. Click the icon above to learn more or use the program.

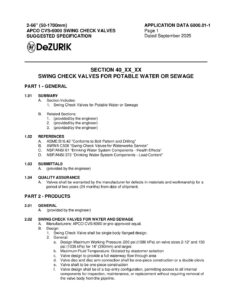

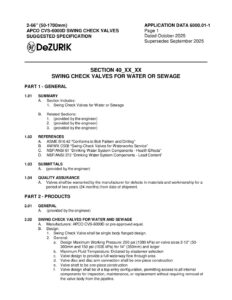

Specification

Open Close

2-20” (50-500mm) APCO CVS-6000-OC Swing Check Valve with Side Mounted Oil Control Specification 6000.01-3

Download Resource

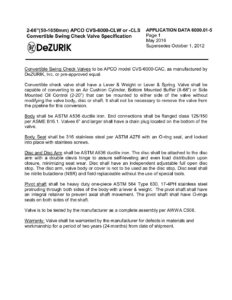

2-66” (50-1650mm) APCO CVS-6000-CLW or – CLS Convertible Swing Check Valve Specification 6000.01-5

Download Resource

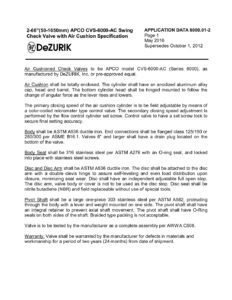

2-66”(50-1650mm) APCO CVS-6000-AC Swing Check Valve with Air Cushion Specification 6000.01-2

Download Resource

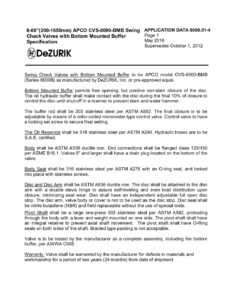

APCO CVS-6000-BMB Swing Check Valves Suggested Specification 6000.01-4

Download Resource
