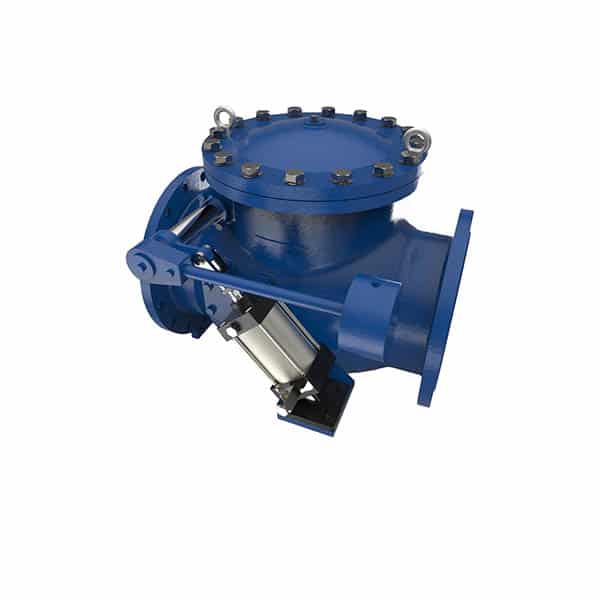

APCO Swing Check Valves (CVS-EDV)

Name: APCO Swing Check Valves (CVS-EDV)
Brand: DeZURIK

All APCO Swing Check Valves are used to prevent the back flow of fluid by closing before flow reversal, thereby preventing slam and water hammer. APCO Swing Check Valves have been successfully installed in clean and dirty applications including sewage treatment, water treatment, water distribution, industrial water and wastewater services. The industrial swing check valve design meets or exceeds the current revision of AWWA standard C508.

APCO CVS-EDV Valves are available in sizes 3-30” (80-750mm), rated to 250 psi CWP (1720 kPa) and are available with ASME Class 125/150 flanges. They are constructed of NSF epoxy lined and coated 12 mil Dry Film Thickness (DTF) ductile iron bodies and covers. Closure control devices include Air Cushioned Cylinder, Lever & Spring and Lever & Weight.

APCO CVS-6000 and CVS-250 Swing Check Valves are also available. Contact your local DeZURIK representative for a recommendation on the right swing check valve for your application!

Description

Open Close

SIZE RANGE:
3-30″ (80-750mm)

BODY MATERIAL:
Ductile Iron

PRESSURE RATING:
250 psi CWP (1720 kPa)

DISC SEAT MATERIAL:
Acrylonitrile-Butadiene (NBR)
Terpolymer of Ethylene, Propylene and A Diene (EPDM)

END CONNECTIONS:
ASME Class 125/150

CLOSURE DEVICES:
Air Cushioned Cylinder, Lever & Spring and Lever & Weight

Bulletins

Open Close

APCO CVS-EDV Swing Check Valves 245.00-1

Download Resource

Applications

Open Close

Valve Selection for the Safe Operation & Protection of the Pump Station

Download Resource

Defining Expectations During Valve Selection

Download Resource

Selection & Sizing

Open Close

Material Selection Guide

DeZURIK’s Material Selection Guide program makes it quick and easy to determine which metals or elastomers are suggested as suitable for application in a specific corrosive media. Click the icon above to learn more or use the program.

Specification

Open Close

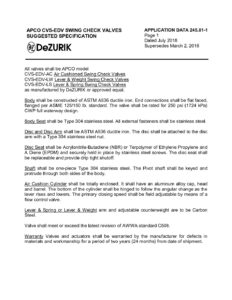

APCO CVS-EDV Swing Check Valves Suggested Specification 245.01-1

Download Resource
