Slurry Knife Gate Valves (KSL-LA) Long Body

KSL-LA Slurry Knife Gate Valves are ideally suited for applications in the mining, power, and aggregate industries.  The KSL-LA Slurry Valve features sleeves of natural rubber or other elastomers that are compressed by sleeve retainers that allow the valve to provide drip-tight shutoff. In addition, the KSL-LA valve features:

  • Bi-directional, drip tight shutoff to full pressure rating
  • Field replaceable sleeves with encapsulated supporting ring
  • Full port reduces turbulence and pressure drop across the valve
  • Sleeve compression eliminates cavity where solids can collect
  • Sleeve design eliminates the requirement of flange gaskets
  • Gate fully retracts out of the flow path in the open position
  • Full flanged design with flange drilling per ASME B16.5 Class 150, DIN and BS standards, PN10 and PN16, and SANS 1123-1000 and 1600 Australian Table D & E (AS 2129) are available
  • Body construction allows for easy repairs.
  • Sleeve design eliminates gate and stem packing.
  • Straight vertical plane superstructure allows for easy installation of accessories
  • Open / Closed position lock-outs are available
  • Optional gate coatings provide additional abrasion resistance and a non-stick (lubrication infused) surface that reduces actuating forces and extends sleeve life
  • Integral Lifting Lugs standard on sizes 12″ (300mm) and larger
  • Flushing drain plates are available
Dezurik Slurry Knife Gate Valves (ksl La) Long Body Design
Ksl La Acg6075 0058
Ksl La 1
Ksl La 2
Ksl La 3

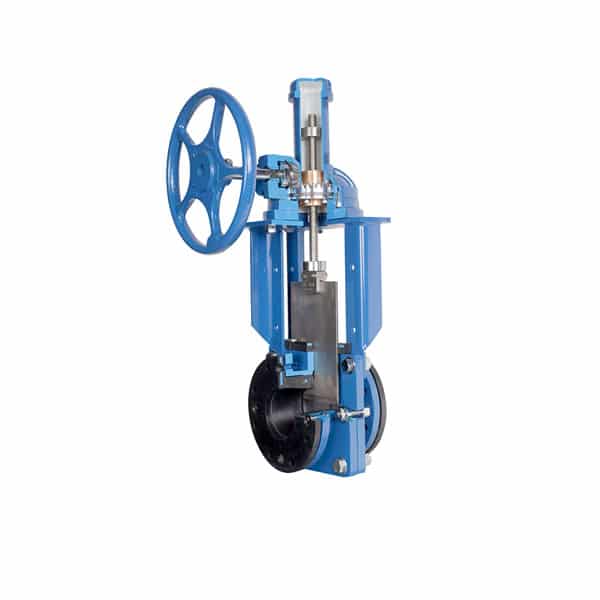

Ksl Cutaway 2 Dez1319 047
Ksl Seat Area Cutway Dez1319 059
Dezurik Slurry Knife Gate Valves (ksl La) Long Body Design
Ksl La Acg6075 0058
Ksl La 1
Ksl La 2
Ksl La 3
Ksl Cutaway 2 Dez1319 047
Ksl Seat Area Cutway Dez1319 059
Snapshot
Open Close

BODY MATERIAL:
Cast Ductile Iron, Carbon Steel and various Stainless Steel or higher alloy materials

PRESSURE RATING:
100 psi CWP (690kPa), with higher pressures available with optional gate materials

SIZE RANGE:
2-24″ (50-600mm) with larger sizes available on application

TEMPERATURE RANGE:
to 177°F (81°C) as standard, and up to 300°F (150°C) with high-temperature optional seat materials

Bulletins
Open Close
DeZURIK KSL-LA Slurry Knife Gate Valves 52.00-1A

DeZURIK KSL-LA Slurry Knife Gate Valves 52.00-1A

Download Resource
White Papers
Open Close
Knife Gate Valve Styles, Applications, Operating Conditions & Installation Performance

Knife Gate Valve Styles, Applications, Operating Conditions & Installation Performance

Download Resource
Valve Solutions for Mine Dewatering

Valve Solutions for Mine Dewatering

Download Resource
Defining Expectations During Valve Selection

Defining Expectations During Valve Selection

Download Resource
Selection & Sizing
Open Close

Material Selection Guide

Material Selection Guide

DeZURIK’s Material Selection Guide program makes it quick and easy to determine which metals or elastomers are suggested as suitable for application in a specific corrosive media. Click the icon above to learn more or use the program.

Specification
Open Close
DeZURIK KSL-LA Slurry Knife Gate Valve Suggested Specification 52.01-1

DeZURIK KSL-LA Slurry Knife Gate Valve Suggested Specification 52.01-1

Download Resource
CAD Drawings
Open Close
Manuals
Open Close

Valve Manuals

D11039 - DeZURIK 2-24" KSL-LA LONG BODY SLURRY KNIFE GATE VALVES

D11039 – DeZURIK 2-24″ KSL-LA LONG BODY SLURRY KNIFE GATE VALVES

Download Instruction Manual

Actuator Manuals

DP00129 - DYNATORQUE INC - GENERAL MAINTENANCE AND OPERATION MANUAL

DP00129 – DYNATORQUE INC – GENERAL MAINTENANCE AND OPERATION MANUAL

Download Instruction Manual
DP11004 - RDC CONTROL SERIES PA VALVE ACTUATORS

DP11004 – RDC CONTROL SERIES PA VALVE ACTUATORS

Download Instruction Manual
DP11006 - RDC CONTROL SERIES HL, HM AND HP HYDRAULIC CYLINDER VALVE ACTUATORS

DP11006 – RDC CONTROL SERIES HL, HM AND HP HYDRAULIC CYLINDER VALVE ACTUATORS

Download Instruction Manual
D11041 - MANUAL ACTUATOR FOR KSL SLURRY VALVES

D11041 – MANUAL ACTUATOR FOR KSL SLURRY VALVES

Download Instruction Manual
D11040 - CYLINDER ACTUATOR FOR KNIFE GATE VALVES

D11040 – CYLINDER ACTUATOR FOR KNIFE GATE VALVES

Download Instruction Manual

Accessory Manuals

D11043 - LOCKOUT DEVICE FOR BEVEL GEAR ACTUATED KNIFE GATE VALVES

D11043 – LOCKOUT DEVICE FOR BEVEL GEAR ACTUATED KNIFE GATE VALVES

Download Instruction Manual
D11042 - LOCKOUT DEVICE FOR HANDWHEEL ACTUATED KSL SLURRY KNIFE GATE VALVES

D11042 – LOCKOUT DEVICE FOR HANDWHEEL ACTUATED KSL SLURRY KNIFE GATE VALVES

Download Instruction Manual
