Cast Stainless Steel Knife Gate Valves

DeZURIK KGN Knife Gate valves are available as a bi-directional resilient seated valve or a unidirectional metal seated valve.

KGN-RSB Bi-Directional Resilient Seated Knife Gate Valves are designed for isolation, on-off applications in corrosive, abrasive liquid applications in Pulp & Paper, Mining, Waste Water, Chemical, Petrochemical, Power and Steel. The KGN-RSB provides bubble tight shutoff in both directions up to the full rating of the valve.

KGN-MSU metal seated unidirectional Cast Stainless Steel Knife Gate Valves are designed for applications in corrosive, abrasive liquid slurry or dry material applications including: Pulp & Paper, Mining, Waste Water, Chemical, Petrochemical, Power and Steel.

All KGN valves feature a cast, corrosion resistant stainless steel body and packing gland. The gate and stem are also stainless steel; the superstructure is stainless steel with an option of carbon steel on metal seated valves.

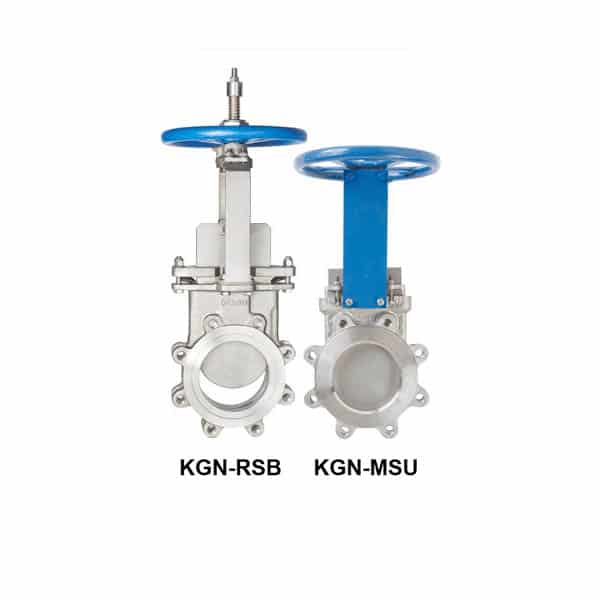

Kgn Valves

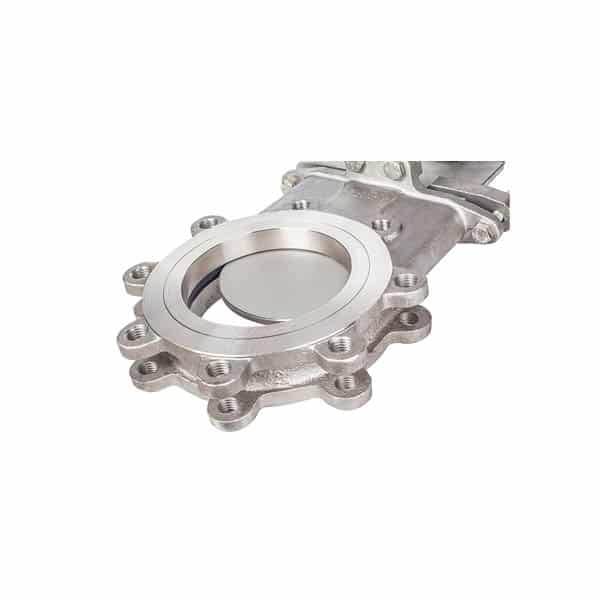

Kgn Rsb 3

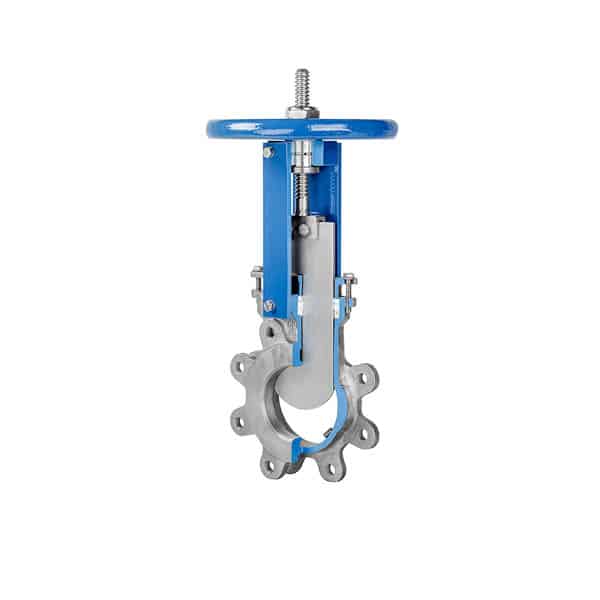

Kgn Msu Acg6075 0033

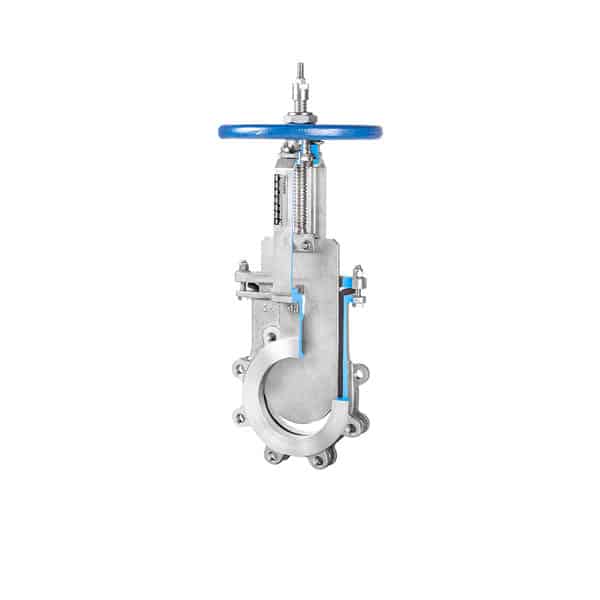

Kgn Rsb Acg6075 0043

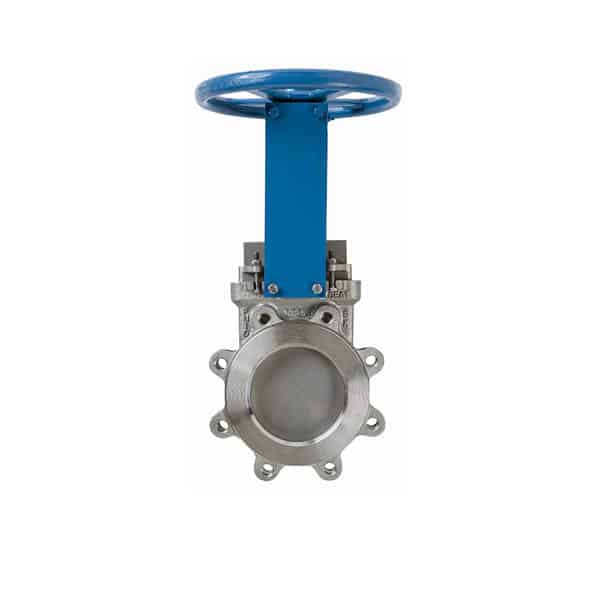

Kgn Msu 1
Kgn Msu 2

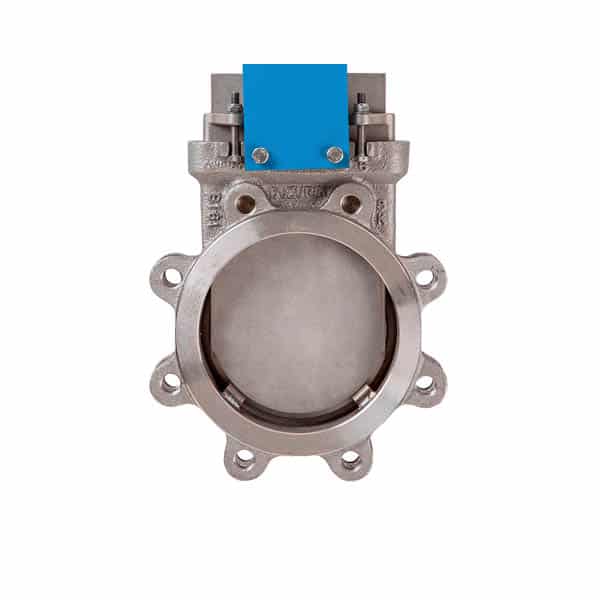

Kgn Msu Closeup

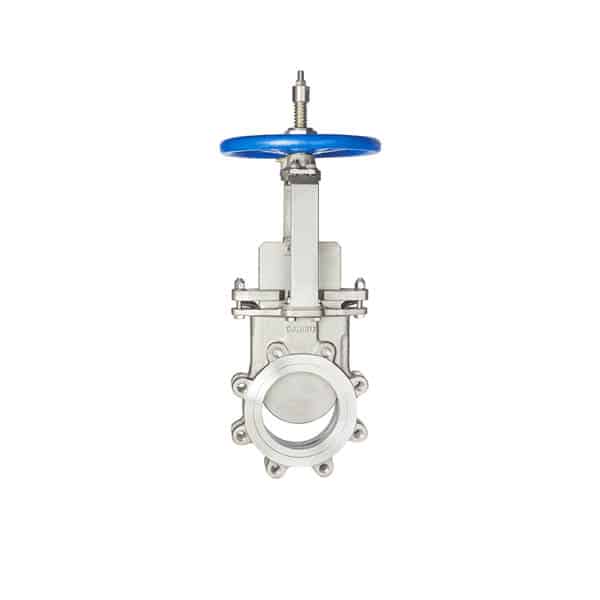

Kgn Rsb 1
Kgn Rsb 2
Kgn Valves
Kgn Rsb 3
Kgn Msu Acg6075 0033
Kgn Rsb Acg6075 0043
Kgn Msu 1
Kgn Msu 2
Kgn Msu Closeup
Kgn Rsb 1
Kgn Rsb 2
Snapshot
Open Close

SIZE RANGE:
Resilient Seated (RSB): 2-24” (50-600mm)
Metal Seated (MSU): 2-36″ (50-900mm)

PRESSURE RATING:
2-24″ (50-­600mm) – 150 psi C.W.P. (1030 kPa)
30-36″ (750-900mm) – 100 psi (690 kPa)

Bulletins
Open Close
DeZURIK KGN-MSU Metal Seated Cast Stainless Steel Knife Gate Valves 29.00-1A

DeZURIK KGN-MSU Metal Seated Cast Stainless Steel Knife Gate Valves 29.00-1A

Download Resource
DeZURIK KGN-RSB Bi-Directional Cast Stainless Steel Knife Gate Valves 29.00-1C

DeZURIK KGN-RSB Bi-Directional Cast Stainless Steel Knife Gate Valves 29.00-1C

Download Resource
Applications
Open Close
Knife Gate Valve Styles, Applications, Operating Conditions & Installation Performance

Knife Gate Valve Styles, Applications, Operating Conditions & Installation Performance

Download Resource
Valve Selection in Pulp & Paper Operations

Valve Selection in Pulp & Paper Operations

Download Resource
Defining Expectations During Valve Selection

Defining Expectations During Valve Selection

Download Resource
Selection & Sizing
Open Close

Material Selection Guide

Material Selection Guide

DeZURIK’s Material Selection Guide program makes it quick and easy to determine which metals or elastomers are suggested as suitable for application in a specific corrosive media. Click the icon above to learn more or use the program.

Specification
Open Close
DeZURIK KGN Cast Knife Gate Valves Suggested Specification 29.01-1

DeZURIK KGN Cast Knife Gate Valves Suggested Specification 29.01-1

Download Resource
CAD Drawings
Open Close

KGN-MSU

KGN-RSB

Manuals
Open Close

Valve Manuals

D11000 - DeZURIK 2-36" KGN-MSU UNIDIRECTIONAL CAST STAINLESS STEEL KNIFE GATE VALVES

D11000 – DeZURIK 2-36″ KGN-MSU UNIDIRECTIONAL CAST STAINLESS STEEL KNIFE GATE VALVES

Download Instruction Manual
D11023 - DeZURIK 2-24" KGN-RSB BI-DIRECTIONAL CAST STAINLESS STEEL KNIFE GATE VALVES

D11023 – DeZURIK 2-24″ KGN-RSB BI-DIRECTIONAL CAST STAINLESS STEEL KNIFE GATE VALVES

Download Instruction Manual

Actuator Manuals

DP00129 - DYNATORQUE INC - GENERAL MAINTENANCE AND OPERATION MANUAL

DP00129 – DYNATORQUE INC – GENERAL MAINTENANCE AND OPERATION MANUAL

Download Instruction Manual
D10079 - MANUAL ACTUATOR FOR KNIFE GATE VALVES

D10079 – MANUAL ACTUATOR FOR KNIFE GATE VALVES

Download Instruction Manual
D11066 - CYLINDER ACTUATOR FOR KNIFE GATE VALVES

D11066 – CYLINDER ACTUATOR FOR KNIFE GATE VALVES

Download Instruction Manual
