DeZURIK Eccentric Plug Valves (PEC, PEF)

Name: DeZURIK Eccentric Plug Valves (PEC,PEF)
Brand: DeZURIK

DeZURIK Eccentric Plug Valves are used to handle clean and dirty liquids, sludge, slurries and gases. They can be used for either isolation/shutoff or throttling/control services. The quarter turn eccentric action and resilient plug facings ensure lasting bubble-tight shutoff. As the eccentric plug rotates from open to closed, it moves into a raised eccentric seat. When in the open position, the plug is out of the flow path. As the plug closes, it moves eccentrically toward the seat without scraping the seat or body walls, so there is no plug binding or wear! The resilient plug face makes full, uniform, firm contact with the seat for bubble-tight shutoff.

Eccentric Plug Valves feature a rectangular port design that provides wide tolerance seating geometry for lasting superior shutoff. The eccentric plug action and resilient plug facings assure lasting dead-tight shutoff. Standard features include corrosion-resistant bearings, welded nickel seat, grit excluders, and adjustable stem seal packing.

Port area options include 100% of standard pipe area for applications where highest flow is required (such as pumped systems), and 70/80% area for non-pumped (gravity feed) systems. The straight-through body design maximizes flow capacity and reduces head loss. Flanged or mechanical joint end connections are available.

Dezurik Soft Rubber Lined Eccentric Plug Valve (pec Cis)

Snapshot

Open Close

SIZE RANGE:
.5 – 72″ (15 – 1800mm)

TEMPERATURE RANGE:
450°F (232°C)

SHUTOFF CLASS:
Resilient plug facing: drip tight
Metal plug: equal to ANSI/FCI 70-2 Class IV

BODY MATERIAL:
Cast iron, ductile iron, bronze, aluminum, carbon steel, stainless steel, Alloy 20, and Monel

PRESSURE RATING:
PEC Eccentric Plug Valves:

Cast Iron: .5-12” = 175 psi (15-300mm = 1210 kPa); 14-72” = 150 psi (350-1800mm = 1035 kPa)
Ductile Iron:.5-12” = 285 psi (15-300mm = 1965 kPa); 14-72” = 250 psi (350-1800mm = 1724 kPa)
Special: 450 psi (3100 kPa)

PEF Eccentric Plug Valves:

Cast Iron or Ductile Iron: 3-12” = 175 psi (80-300mm = 1210 kPa); 14-36” = 150 psi (350-1800mm = 1035 kPa)

SUGGESTED SPECIFICATIONS:

Bulletins

Open Close

DeZURIK PEC & PEF 3″ & Larger Eccentric Plug Valves 12.00-1C

Download Bulletin

PEC .5-3″ Eccentric Plug Valves 12.00-1A

Download Resource

PEC 4″ & Larger Eccentric Plug Valves Technical 12.00-1D

Download Bulletin

PEF 100% Port 3″ & Larger Eccentric Plug Valve 12.60-1B

Download Bulletin

Applications

Open Close

DeZURIK Glass-Lined Eccentric Plug Valves for High Viscosity Sludge / Biosolids Handling Application Solution 227

Download Solution

DeZURIK PEC Eccentric Plug Valves for Acid Rock Drainage Low pH Mine Slurry Application Solution 222

Download Solution

DeZURIK PEC Eccentric Plug Valve in Pulp Mill Green Liquor Isolation Application Solution 217

Download Resource

DeZURIK Eccentric Plug Valves for Digester Gas Service Application Solution 105

Download Solution

DeZURIK Eccentric Plug Valve Accurately Controls Flow For Fish Ladder Attraction Pool Application Solution 208

Download Solution

White Papers

Open Close

Valve Basics: The Eccentric Plug Valve

Download Resource

Valve Selection in Pulp & Paper Operations

Download Resource

Defining Expectations During Valve Selection

Download Resource

Specifications

Open Close

Specification Builder: Use this tool to build your own specification for Eccentric Plug Valves in ACG format

or download a specification below.

½-3” PEC Eccentric Plug Valves Suggested Specification 12.01-3

Download Spec

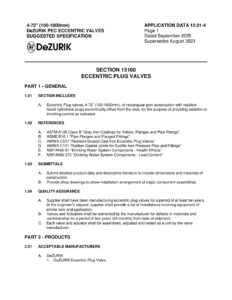

4-72” PEC Eccentric Plug Valves Suggested Specification 12.01-4

Download Spec

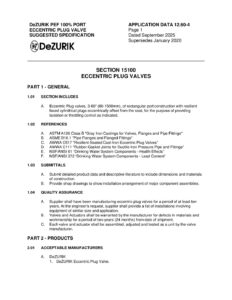

PEF 100% Port Eccentric Plug Valves Suggested Specification 12.60-4

Download Spec

Rubber Lined PEC Eccentric Plug Valve Suggested Specification 12.01-15

Download Spec

Selection & Sizing

Open Close

Alpha I

Alpha-I is a control valve sizing program that performs sizing calculations for DeZURIK control valves based on your process conditions. Click the icon above to learn more and download the program.

Material Selection Guide

DeZURIK’s Material Selection Guide program makes it quick and easy to determine which metals or elastomers are suggested as suitable for application in a specific corrosive media. Click the icon above to learn more or use the program.
