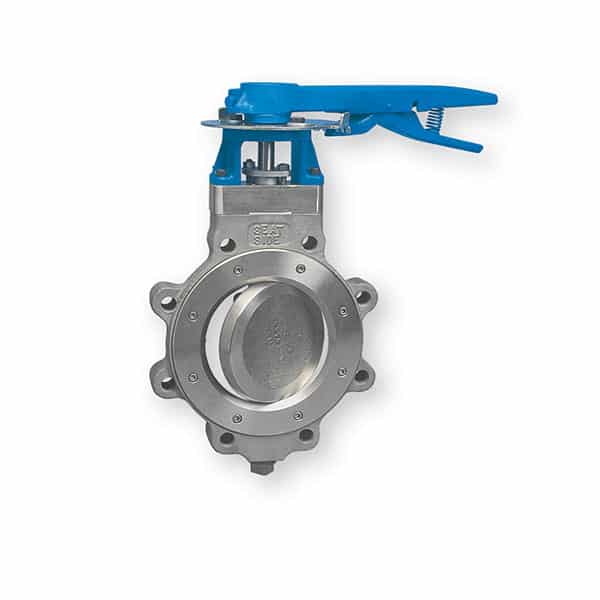

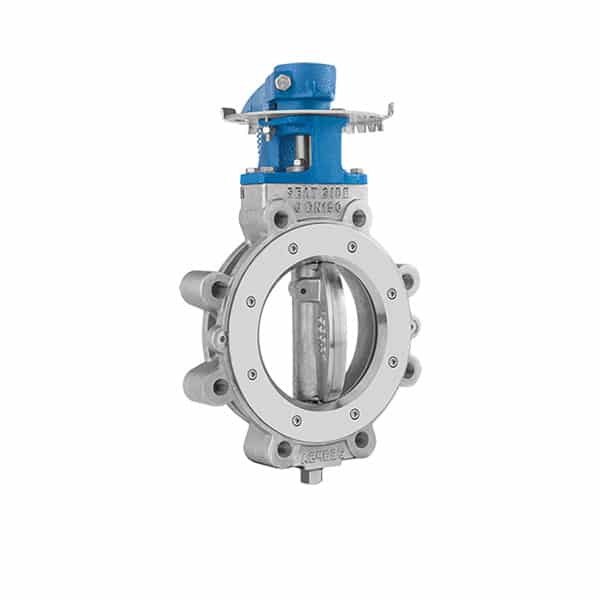

DeZURIK High Performance Butterfly Valves

Name: DeZURIK High Performance Butterfly Valves (BHP)
Brand: DeZURIK

DeZURIK BHP High Performance Butterfly Valves are specially designed for applications in the chemical, hydrocarbon processing, pulp & paper, water & wastewater and HVAC industries worldwide. The valve was designed with an understanding that process industries need products that provide exceptional performance while reducing the total cost of ownership.

BHP butterfly valves have been rigorously tested to meet industry performance requirements. A fully supported one-piece shaft and heavy-duty bearings ensure perfect alignment of seat and disc leading to long life and trouble-free performance.

DeZURIK offers a wide variety of seat options including PTFE seat, reinforced PTFE seat, flexible metal seat and a dual seat. DeZURIK BHP Butterfly Valves combine extreme service capabilities with features which have been time-tested for over 30 years.

Dezurik High Performance Butterfly Valves (bhp)

Snapshot

Open Close

SIZE RANGE:
2-60″ (50-1500mm)

TEMPERATURE RANGE:
to 700°F (370°C). On application to 1000°F (540°C)

ASME CLASS RATING:
150, 300

PRESSURE RATING:
275-740 psi (1890-5100 kPa); 150 psi (1030 kPa) option 36” (900m) and larger.

ANSI B16.104 SHUTOFF CLASS:

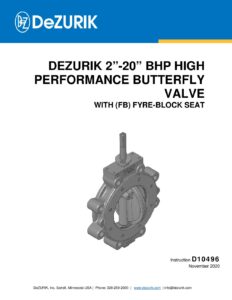

PTFE, Dual and Fyre-Block Seat, Class VI; Metal seat, Class IV or V

BODY STYLES:
Wafer or Lugged

BODY MATERIAL:
Carbon Steel, 316 or 317 stainless steel

ACTUATOR TYPE:

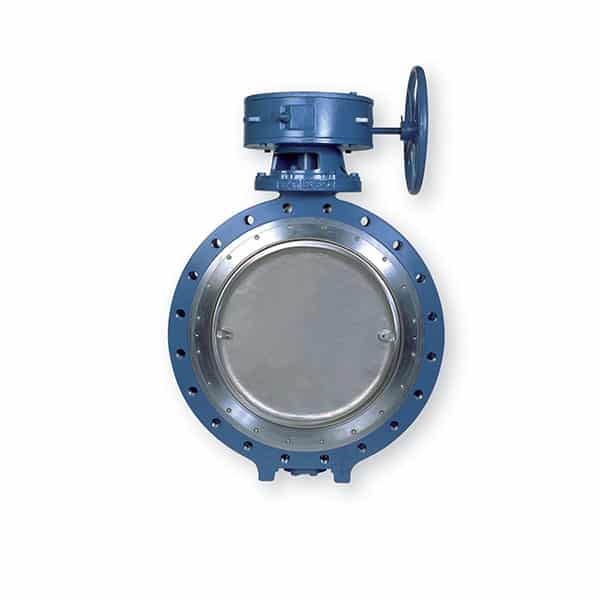

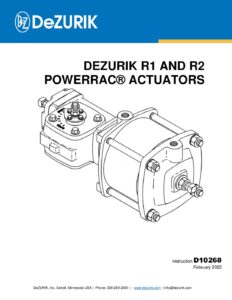

Lever, handwheel, chainwheel, square nut, PowerRac® double-acting and spring- return cyinder, spring-return diaphragm, Compak double-acting and spring-return cylinder

APPLICATIONS:

BHP butterfly valves are designed to handle everything from general applications to viscous and corrosive liquids; corrosive gases; and steam. They have been successfully applied in extreme services, including: high temperature services, throttling steam control, polymerizing media, liquor service with entrained solids, high cycle industrial gas, process gas-off applications, paper stock isolation, vacuum pump isolation, corrosive chemical service (titanium construction), fire-safe refinery & chemical service, heat transfer service, and throttling hydrocarbon service.

Bulletins

Open Close

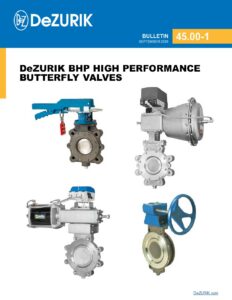

DeZURIK BHP High Performance Butterfly Valves 45.00-1

Download Resource

Applications

Open Close

DeZURIK BHP High Performance Butterfly Valves For Fly Ash Slurry Service

Download Solution

DeZURIK BHP High Performance Butterfly Valves for Gas Fired Utilities Selective Catalytic Reduction (SCR) Systems

Download Solution

Valve Selection in Pulp & Paper Operations

Download Resource

Defining Expectations During Valve Selection

Download Resource

Butterfly Valve Selection: Key Styles and Application Factors

Download White Paper

Selection & Sizing

Open Close

Alpha I

Alpha-I is a control valve sizing program that performs sizing calculations for DeZURIK control valves based on your process conditions. Click the icon above to learn more and download the program.

Material Selection Guide

DeZURIK’s Material Selection Guide program makes it quick and easy to determine which metals or elastomers are suggested as suitable for application in a specific corrosive media. Click the icon above to learn more or use the program.
